RUBY & SAPPHIRE WATERJET ORIFICEs & NOZZLES

Calculate the True Cost

dti™ manufactures the highest quality ruby and sapphire nozzle assemblies available for the waterjet cutting, surface preparation and material removal industries. We offer a wide variety of standard orifice sizes and assemblies as well as custom orifice sizes and assemblies designed to meet your exact specifications. We also offer custom orifices for a wide range of other industries including homogenization, medical, 3D printing and many more.

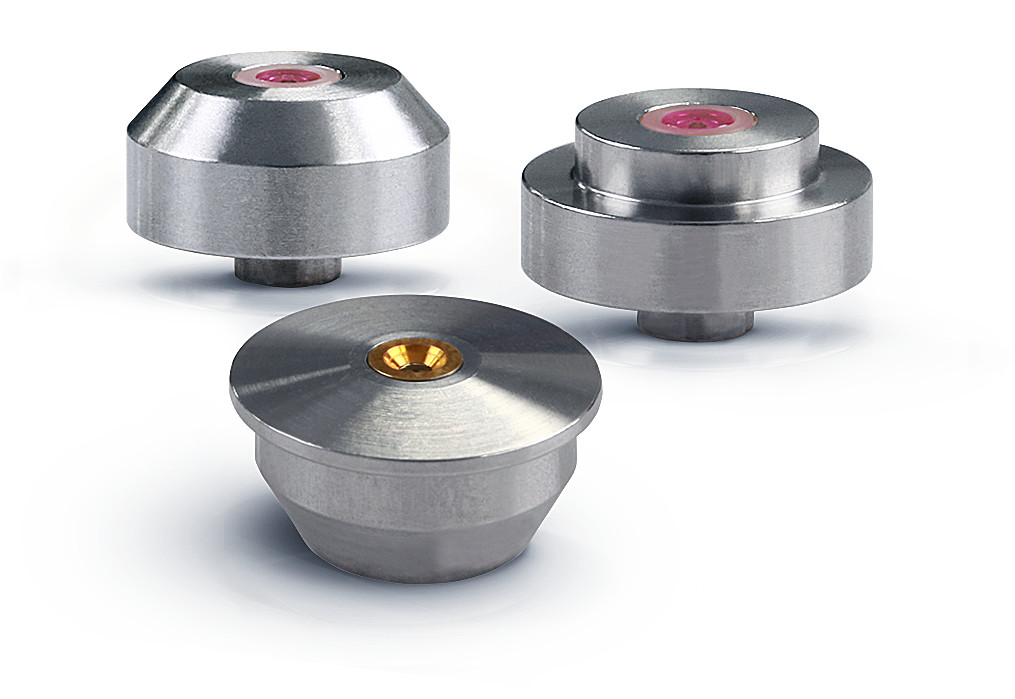

Three Ruby Orifices

WATERJET CUTTING STANDARD SIZES: 0.005"-0.018"
WATERJET BLASTING STANDARD SIZES: 0.005”-0.34”
PLEASE INQUIRE ABOUT CUSTOM SIZES

View our Waterjet Cutting Standard Parts Catalogue

View our Waterjet Blasting Standard Parts Guide

calculate the true cost

Find out how much you'll save by upgrading your orifice.

dti™ produces ruby and sapphire orifices and complete assemblies with the highest quality materials and manufacturing standards worldwide. Because of this, our ruby and sapphire orifices and nozzles on average outlast all similar products from competing companies.

Top-of-the-Line Stainless Steel Mount

Choice of Plastic or Bronze High Quality Retainer

Critical Product Inspection Through Each Production Process

Laser Marking Per Customer Preferences

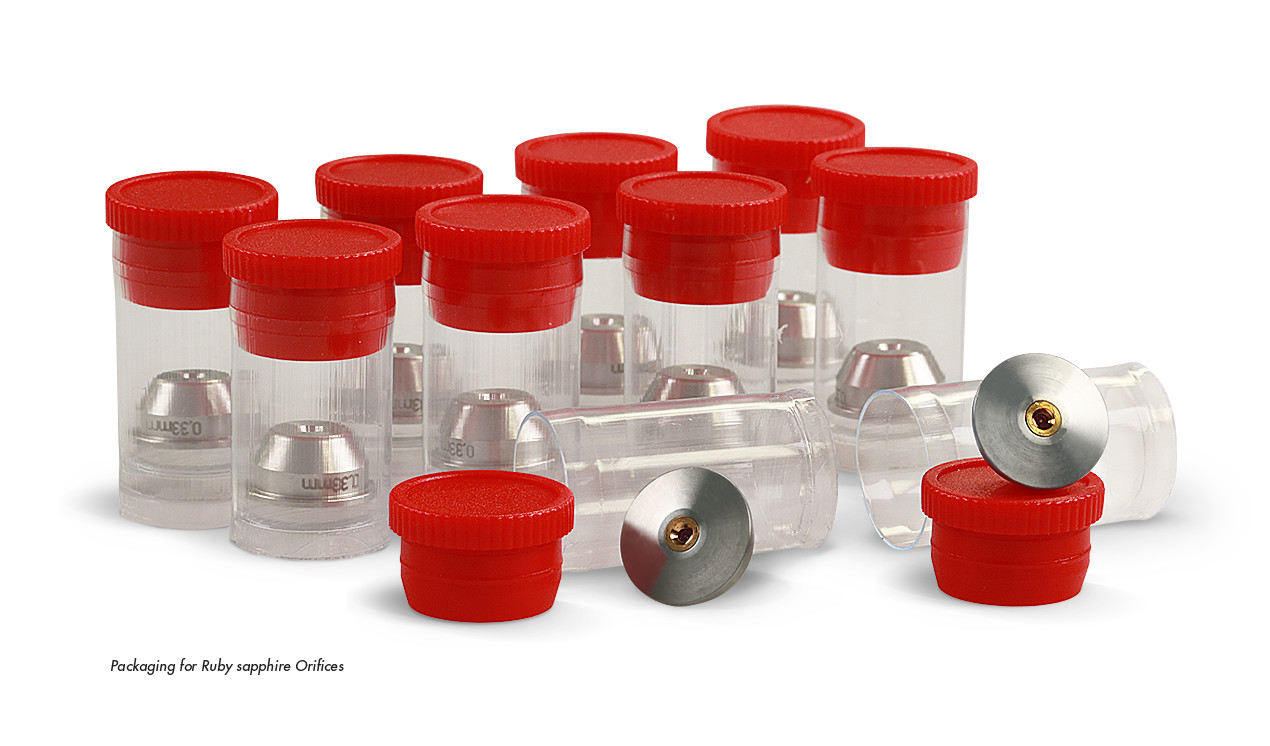

Individual Plastic Tube & Cap Containers for Safe Shipping & Distribution

PERFORMANCE ADVANTAGES OF dtiUTILITY™ RUBY & SAPPHIRE ORIFICES

Ruby Sapphire Orifices and Nozzles

Utility Grade: Long life

High jet stream coherency

Max jet stream length

Premier sapphire & ruby material quality

Aerospace grade mounting & retaining materials

100% quality inspection

Custom packaging and labeling options

Because each dti™ ruby and sapphire nozzle is backed with over 30 years of experience and manufactured with the best, industry proven procedures and materials, our customers continue to rely on us to provide the longest lasting assemblies in the world today. Depending on your application, cutting pressures, shop cleanliness and many additional factors, every user is susceptible to a different average ruby or sapphire lifetime. For further lifetime details based on your specific application, please contact us.

Although dtiCORE™ Diamond and tetraCORE™ Orifices are most ideal for waterjet cutting and cleaning applications, ruby and sapphire remain a commonly used orifice material. While ruby and sapphire, also known as corundum, are still heavily utilized today for non-critical applications, due to their inherent material characteristics they do not hold up well to impacts from on/off cycles, metal debris from high pressure lines, or abrasive particles that collide with the orifice edges. Any of these impacts can render the jewel useless in an instant. It takes only one impact on the inlet edge of a ruby or sapphire to chip it, causing jet stream quality failure. For these reasons, we almost always recommend upgrading to a higher quality diamond orifice material. Customers that make the switch typically never switch back due to significant increases in their productivity and bottomline.

WORLDWIDE dtiUTILITY™ RUBY & SAPPHIRE DISTRIBUTION

dti™ has trusted partnerships with the top waterjet OEMs and Distributors worldwide, making standard products readily available to you when you need them wherever you may be located. Contact us to find a distributor in your area. If interested in becoming a distributor of our products, call or email us today.

dti Inside - Worldwide Distributors

For more information and pricing on standard or custom ruby or sapphire orifices, Request a Quote today!
